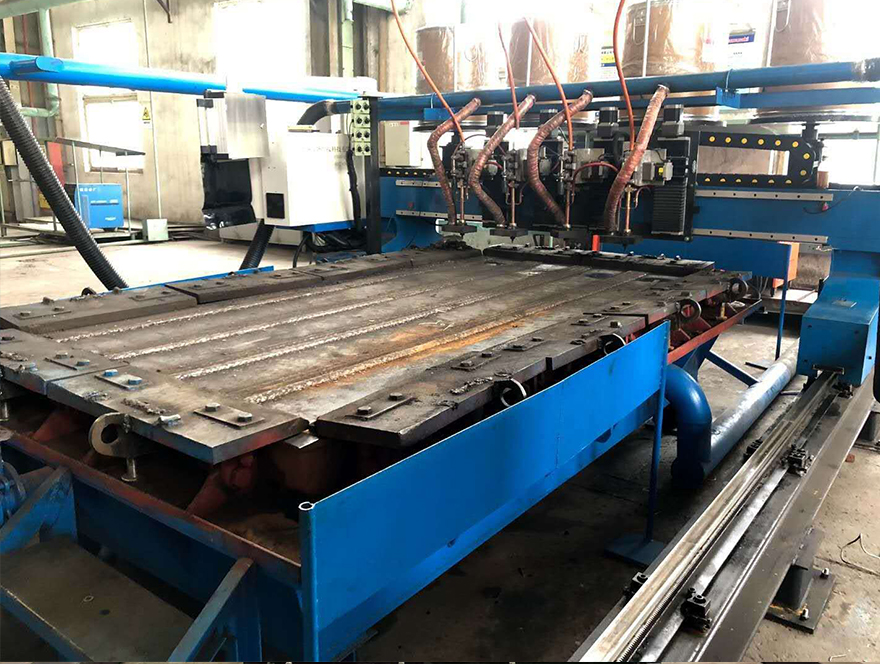

Quadruple Torch Wear Plate Hardfacing Machine

JH-800Q is designed in the control mode for quadruple-wire welding mode, flux-cored wire and powder mixing mode, and in the manual mode, it can operate independently for each mechanism. During welding operation, wire feeding, powder adding, X-axis driving, the system accurately set the speed. In order to improve the surfacing performance of the whole equipment and improve the process and control performance of the equipment, our company adopts TECO 10.2 inch true color touch screen as the exchange unit on man-machine exchange, with remote control function. Users can operate independently by remote control (trolley, wire feed, start and stop) during operation, and the remote control can operate within a range of 25 meters. When welding various specifications of bimetal wear plate, the equipment system presets the function of data storage, including the function of wire feeding and powder feeding speed of each specification. The user only needs to preset the data of various specifications.

立即咨询下一款产品

规格

No	Description	Parameter
1	Effective welding width	≤1560mm
2	Effective welding length	≤3100mm
3	Number of welding torch	4 torch heads
4	No-live load speed	0-3000mm/min
5	Surfacing material	Q235 Q345 Corben-steel plate
6	Surfacing thickness of wear-resisting layer	2-30mm
7	Surfacing rate of wear-resistant layer	100-300 mm/min
8	Hardfacing Height	0-80mm
9	Hardfacing distance lifting mode	Manual mechanical regulation
10	Machine accuracy standard	As Per JB/T5102-2005
11	Linear positioning accuracy	±1mm/5m
12	Velocity error	±0.5%
